Suzuki GSXR400SPII Airbox sensor/carbs
Hi,

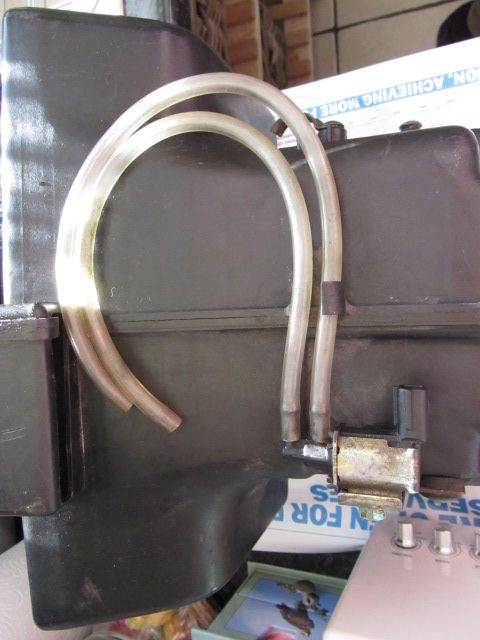

Could anyone help with a project Iv just purchased it a SP version of this bike but its has come in boxes, Im having trouble with the loom. There is a sensor on the top of the air box that has two pipes coming from it and Im not sure where the pipes should go.

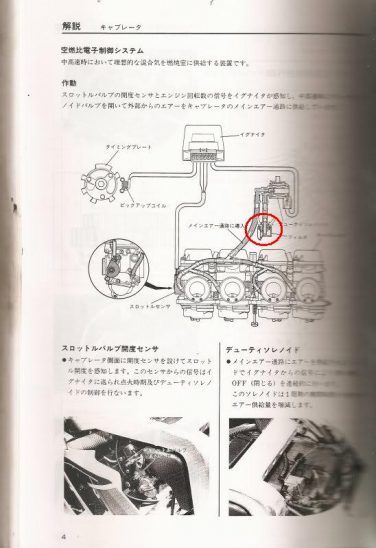

Please see attached photo
What are all these pipes joined to?
A(purple) top of airbox?
B(yellow) ??
C(Lime green)??
D(Red)??
What is the part circled in red?
Could anyone help with a project Iv just purchased it a SP version of this bike but its has come in boxes, Im having trouble with the loom. There is a sensor on the top of the air box that has two pipes coming from it and Im not sure where the pipes should go.
Please see attached photo
What are all these pipes joined to?
A(purple) top of airbox?
B(yellow) ??
C(Lime green)??
D(Red)??
What is the part circled in red?
Last edited by guitarman on Sat Apr 06, 2013 10:17 am, edited 12 times in total.
-
4hundread
- Site Supporter
- Posts: 207
- Joined: Sat Apr 03, 2010 8:03 pm
- Bike owned: 91 GSXR 400
- Location: Dundee
Re: Suzuki GSXR400SPII
H
Last edited by 4hundread on Sat Feb 18, 2017 11:47 pm, edited 1 time in total.
-
Gimly56
- Familiar Member
- Posts: 260
- Joined: Thu Aug 30, 2012 10:47 pm
- Bike owned: NC29 CBR400RR
- Location: New Zealand
Re: Suzuki GSXR400SPII
Post up a photo if you get a chance buddy & I might be able to help? I've just sold my SP version GSXR250 and they're very similar to the big brother 400.
-
slo12
- NWAA Supporter
- Posts: 102
- Joined: Sat Jun 14, 2008 1:36 pm
- Bike owned: v4's
- Location: usa
Re: Suzuki GSXR400SPII
air pressure sensor. I need one as well
being able to ride from point A to point B does not mean you have skills
-
Variablevalves suck
- Site Supporter
- Posts: 1922
- Joined: Sat Jan 24, 2009 10:52 am
- Bike owned: GSXR Carb o'ring kits supplied
- Location: Stoke-on-trent
Re: Suzuki GSXR400SPII Airbox sensor
The two pipes should run to a white nylon junction that then splits into 4 pipes that attach to the side of the float bowls.
The valve on the airbox is opened and closed in relation to TPS and revs and pressurizes the float bowls.
The valve on the airbox is opened and closed in relation to TPS and revs and pressurizes the float bowls.
-
Gimly56
- Familiar Member
- Posts: 260
- Joined: Thu Aug 30, 2012 10:47 pm
- Bike owned: NC29 CBR400RR
- Location: New Zealand
Re: Suzuki GSXR400SPII Airbox sensor
I concur. I had to buy a brass joiner to connect the hoses to the 4 carbs as mine was missing.
-
guitarman
- Settled in member
- Posts: 45
- Joined: Sun Mar 31, 2013 7:44 pm
- Bike owned: GSXR400 GK76
- Location: Nottingham
Re: Suzuki GSXR400SPII Airbox sensor
Could you please take a look at the photo Iv attached to the post and help me sort out the pipe problem.Variablevalves suck wrote:The two pipes should run to a white nylon junction that then splits into 4 pipes that attach to the side of the float bowls.
The valve on the airbox is opened and closed in relation to TPS and revs and pressurizes the float bowls.
-
guitarman
- Settled in member
- Posts: 45
- Joined: Sun Mar 31, 2013 7:44 pm
- Bike owned: GSXR400 GK76
- Location: Nottingham
Re: Suzuki GSXR400SPII Airbox sensor
Could you please take a look at the photo Iv attached to the post and help me sort out the pipe problem.Gimly56 wrote:I concur. I had to buy a brass joiner to connect the hoses to the 4 carbs as mine was missing.
-
4hundread
- Site Supporter
- Posts: 207
- Joined: Sat Apr 03, 2010 8:03 pm
- Bike owned: 91 GSXR 400
- Location: Dundee
Re: Suzuki GSXR400SPII Airbox sensor
P
Last edited by 4hundread on Sat Feb 18, 2017 11:47 pm, edited 1 time in total.
-
Gimly56
- Familiar Member
- Posts: 260
- Joined: Thu Aug 30, 2012 10:47 pm
- Bike owned: NC29 CBR400RR
- Location: New Zealand
Re: Suzuki GSXR400SPII Airbox sensor
You can connect some hoses to 'A' and simply have them hanging down into space. I did that on mine and it ran fine. They're only breathers and you can possibly get away with not even connecting any hose to them?
