Fitting a CBR600 rear shock to an NC30

thisischris · Post by **thisischris** » Mon Jun 06, 2011 11:14 pm

You need a spring compressor. Once you compress it enough, the bottom of the shock comes apart in two pieces.

razor400 · Post by **razor400** » Sun Jun 26, 2011 5:17 pm

Hi sorry to hijack the thread, but does anyone know if a 2004 cbr600f shock wuld fit on a 30 as it has a remote res, I doubt ant cutting of the undertray would be needed
cheers

Post by **porndoguk** » Sun Jun 26, 2011 5:22 pm

razor400 wrote:Hi sorry to hijack the thread, but does anyone know if a 2004 cbr600f shock wuld fit on a 30 as it has a remote res, I doubt ant cutting of the undertray would be needed
cheers

how wierd, i was going to ask the same thing! ive aquired one from helping the bro rebuild and swap the engines over from his scrapper he bought friday.

i have a 1995 CBR600F3 Shock with the remote res, i gave my old shock away so dont have it to compare to, but need to know the widths of the mounts, and the lengths between the hole centres,

Post by **Cammo** » Mon Jun 27, 2011 1:09 am

Standard shock dimensions are listed in this ebay ad:

http://www.ebay.com.au/itm/Honda-VFR400 ... 20ba95a656

yazza54 · Post by **yazza54** » Mon Jun 27, 2011 8:11 am

Anyone know where I can get a 850lb cbr600rr6 spring to fit my shock?

I bought a Faulkner one thinking it'd be a standard spring but the cbr one is tapered down to like 2 inch at the bottom but only noticed when taking it off. My spring is like a dick in a shirt sleeve.

Post by **porndoguk** » Mon Jun 27, 2011 9:50 pm

well the cbr600f shock dimensions are

Height 280mm
width top mount 28mm
widgth bottom mount 35mm

yazza54 · Post by **yazza54** » Wed Jul 06, 2011 9:19 am

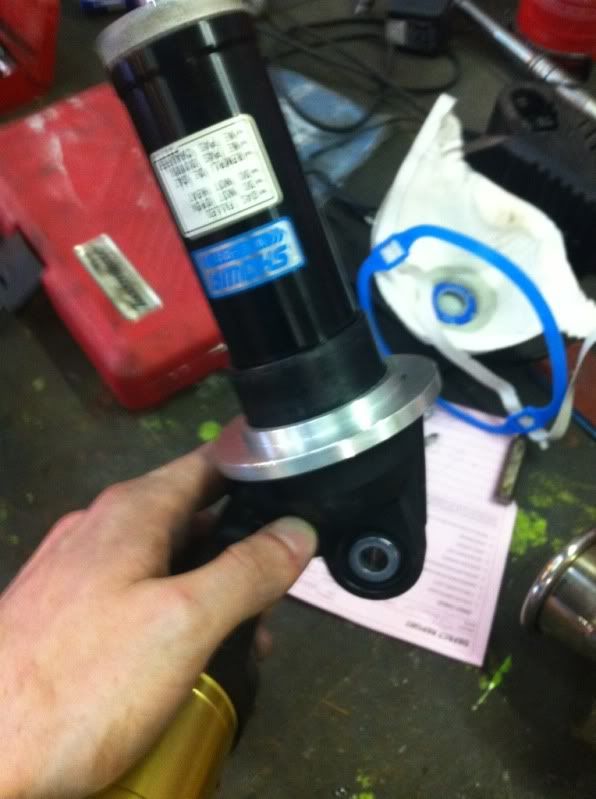

Rang around a bit and couldn't find a non STD tapered spring so I'm fitting my 2.25 ID 800lb spring with a nice ally collar I've had machined up. New 7inch 800lb spring cost 30 quid from faulkner and my dads mate knocked the ring up for peanuts.

Will post more pics when I'm doing it. Also fitted uprated thinner r6 battery.

Spring is 7mm shorter than standard so o had the ring machined 7 mm thick

also has a step to seat the spring

Post by **force-v4** » Thu Jul 07, 2011 9:12 am

Oooooo, let me know how you get on with the collar, if it works, i'll be interested in getting 1 - do you think you could get me 1 made up?

yazza54 · Post by **yazza54** » Thu Jul 07, 2011 10:01 am

force-v4 wrote:Oooooo, let me know how you get on with the collar, if it works, i'll be interested in getting 1 - do you think you could get me 1 made up?

Theres no reason for it not to work :) there's a link on this thread somewhere about some guy who did the same thing, doesn't look as beefy as my collar though. Can always ask the bloke if he will make another.

yazza54 · Post by **yazza54** » Thu Jul 07, 2011 10:03 am

From the original post http://www.peterverdonedesigns.com/05shock.htm
