Drilling the carb bracket - HRC NC30 setup

Post by lukemillar » Sun Jun 12, 2011 7:16 am

Hey,

Just measuring these out based on the HRC manual and I just want to double check that the patten isn't regular. Looking at this page:

http://akhara.com/nc30/nc30hrccarb/index.html

and also at Cammo's carbs in his carb guide, all the holes seem regularly spaced, however, the diagram seems to have a larger offset on one side of the centre line to the other:

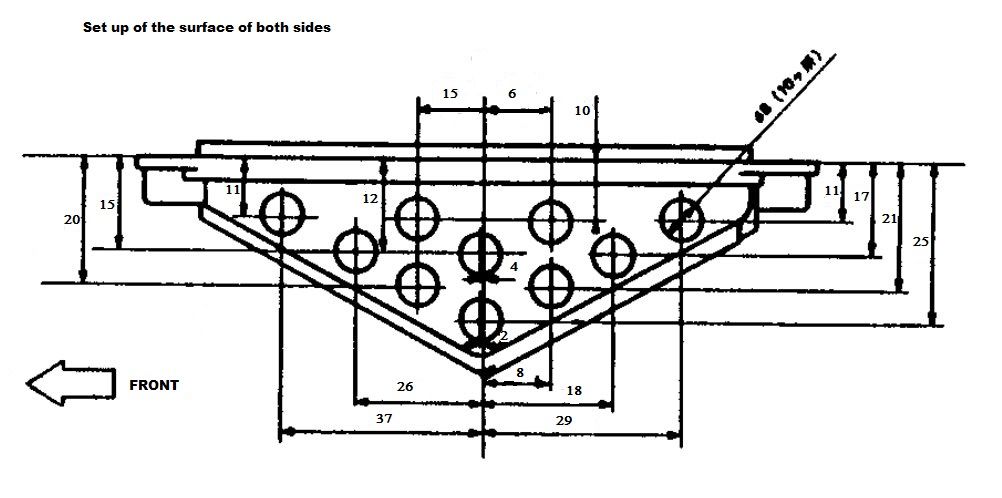

I'm reading these as 18mm and 8mm respectively. I guess the ultimate questuon is... does it matter?

Cheers
Luke
Top
User avatar
CMSMJ1
Moderators
Moderators
Posts: 7152
Joined: Thu May 01, 2008 9:42 am
Bike owned: NC30-No9
Location: Chesterfield, United Kingdom

Re: Drilling the carb bracket - HRC NC30 setup

Post by CMSMJ1 » Sun Jun 12, 2011 8:13 am

I doubt it matters at all.

Get the fins out of the middle nicely though and as long as the tray doesn't flex too much it will be right
IMPERATOR REX ANGLORUM

The V4 is the law..

NC30 - No9 - my old mate
