Changing HT leads on NC29

Post by cbr400rrn » Tue Apr 02, 2013 8:43 pm

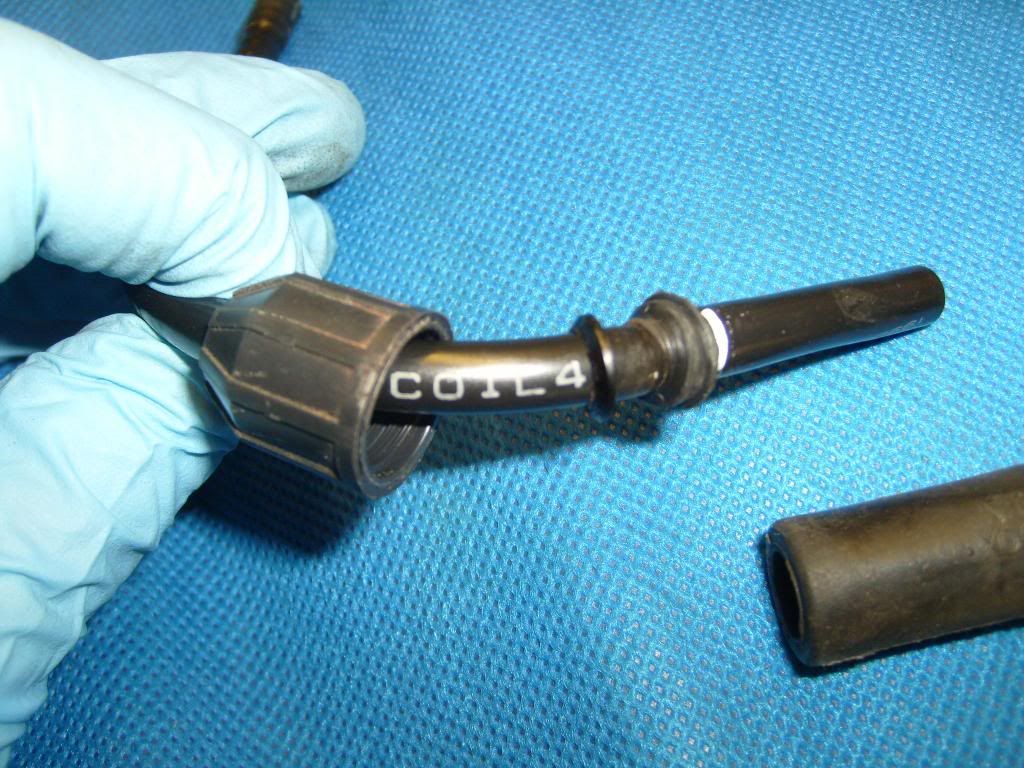

IF anyone fancies upgrading their old HT leads its pretty easy as the coil end of the lead is a compression type of fitting as below

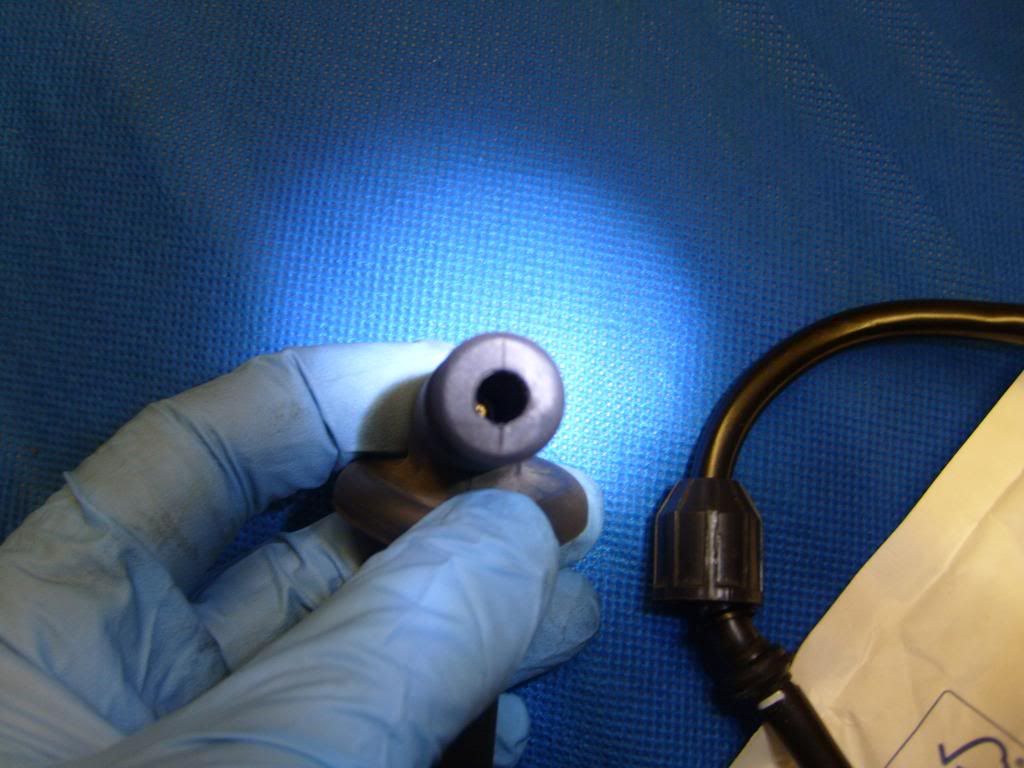

and the plug end is a screw in fitting, you can just see the screw in the bottom of the plug cap in the picture below (5 complete 360 degree turns and they are ready for use)

The hardest part is getting the plug leads off the bike
Hope this helps someone.
Karl.
Top
User avatar
Davez29
Site Supporter
Site Supporter
Posts: 1268
Joined: Sun Aug 03, 2008 8:38 pm
Bike owned: NC29 forever

Re: Changing HT leads on NC29

Post by Davez29 » Wed Apr 03, 2013 7:28 pm

And guess what I was thinking about looking to upgrade, just last night.. Spot on thanks. As its not something I have done in years and more than likely bodged being a youth, what and where do you get your ht leads from?
Top
cbr400rrn
Site Supporter
Site Supporter
Posts: 754
Joined: Tue Apr 29, 2008 9:37 pm
Bike owned: NC29 CBR600F
Location: Lancashire

Re: Changing HT leads on NC29

Post by cbr400rrn » Wed Apr 03, 2013 9:08 pm

I got the HT lead from Graeme, its a bit of a struggle but that's probably only because i didn't move the radiator to give me a little bit more room but it can be done with it in situ
Top
400RRJ
Settled in member
Posts: 58
Joined: Tue Aug 30, 2011 2:07 pm
Bike owned: CBR 400 RRJ NC23
Location: Hastings, East Sussex

Re: Changing HT leads on NC29

Post by 400RRJ » Thu May 30, 2013 2:24 pm

Does any one know if the above is the same for the NC23??

Thanks
Top
leopard_pagan
Senior Member
Posts: 1184
Joined: Thu May 01, 2008 6:42 am
Bike owned: CBR400/600 Fighter
Location: Mildenhall-Suffolk
Contact:
Contact leopard_pagan

Re: Changing HT leads on NC29

Post by leopard_pagan » Thu May 30, 2013 6:06 pm

PEOPLE> STOP!

you do not need to touch the radiator to do this & become a contortionist.
Tank off
air box off
coil packs accesable & remove them..
lift the rubber skirt & duct tape out the way.
now you can reach the plugs/ht leads piss easy...

TOP TIP: mark the HT leads to coil pack & plugs BEFORE you remove them....
Top
cbr400rrn
Site Supporter
Site Supporter
Posts: 754
Joined: Tue Apr 29, 2008 9:37 pm
Bike owned: NC29 CBR600F
Location: Lancashire

Re: Changing HT leads on NC29

Post by cbr400rrn » Thu May 30, 2013 9:05 pm

cbr400rrn wrote:its a bit of a struggle but that's probably only because i didn't move the radiator to give me a little bit more room but it can be done with it in situ
Where does it say i moved the radiator?
Top
leopard_pagan
Senior Member
Posts: 1184
Joined: Thu May 01, 2008 6:42 am
Bike owned: CBR400/600 Fighter
Location: Mildenhall-Suffolk
Contact:
Contact leopard_pagan

Re: Changing HT leads on NC29

Post by leopard_pagan » Thu May 30, 2013 9:06 pm

Haynes manual tells you to swing Rad forward to access plugs..
far easier to go the other way i mentioned.. yes more to come off but ssoooo much easier & you can see more too
