nc30boiii · Post by **nc30boiii** » Thu Oct 22, 2009 4:15 pm

putting my bottom rad back on after giving it a good clean and ive forgotten where this goes.

does anyone know please? am i right in guessing its just an earthing wire?

and also ive forgotten which position the fuel tap should be to have it on, its been so long since i tried to start her up!!

Thanks in advance!!

nc30boiii · Post by **nc30boiii** » Thu Oct 22, 2009 4:30 pm

I shouldda put this at the end of my last bottom rad post, im a noob at this DIY mechanics so go easy on me please!!

padawan · Post by **padawan** » Thu Oct 22, 2009 4:46 pm

Hi Mate,

The wire is the earth and goes to the back of the fan.

The fuel tap has three positions which are labelled ON, RES and OFF just turn it respectively i.e. the top most label is the status of the tap if that makes sense?

vfrman · Post by **vfrman** » Thu Oct 22, 2009 5:29 pm

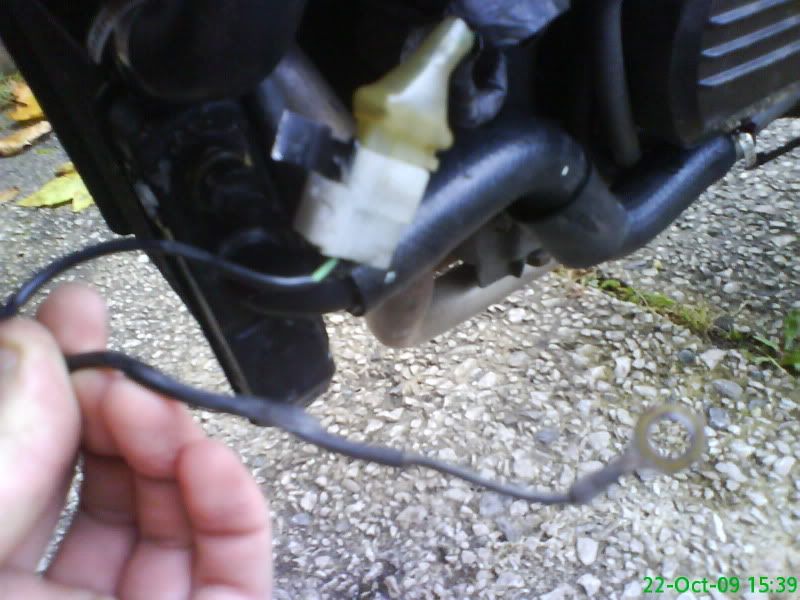

Looks to me like the connector for the main harness is the one for the thermostat, which switches on the fan. I don't know why your wire has a loop connector on the end. I think it is supposed to connect to that sensor that is in the rad in the picture.

Of course I might be wrong, but I don't think so.

nc30boiii · Post by **nc30boiii** » Thu Oct 22, 2009 5:54 pm

Cheers fellas, i remember takin it off the fan now!!

could u help me with another soft question? lol
which spout on the fuel tap does the vacuum pipe go on? i forget, there is one on the fuel tap on the right (3 o'clock on a watch) and one at the bottom (6 o'clock).
also will it matter that i no longer have a scottoiler on my bike and there is a cut-out on the vacuum pipe with a nozzle, which would go to the scottoiler, should i just block this with a screw??
my terminology is awful i know,

vfrman · Post by **vfrman** » Mon Feb 08, 2010 5:46 pm

nc30boiii wrote:Cheers fellas, i remember takin it off the fan now!!
could u help me with another soft question? lol
which spout on the fuel tap does the vacuum pipe go on? i forget, there is one on the fuel tap on the right (3 o'clock on a watch) and one at the bottom (6 o'clock).
also will it matter that i no longer have a scottoiler on my bike and there is a cut-out on the vacuum pipe with a nozzle, which would go to the scottoiler, should i just block this with a screw??
my terminology is awful i know,

It is the 3 o'clock one. As far as blocking with a screw... you can do that, or you can just replace the vacuum pipe with a new one. (I am assuming you are talking about the black rubber hose here.)
