VFR 400 NC21 Help Pls!

damiannunn · Post by **damiannunn** » Tue Jun 11, 2013 2:20 pm

Hi,

Can someone please post a picture of the gear lever and linkage as it is on the bike as I stupidly didnt take a photo when changing damaged for new and now cannot work out how it goes on properly!

There was a modified NC24 lever on before which makes it hard for me to even work it out.

Any help would be greatly appreciated.

Thanks

Post by **Neosophist** » Tue Jun 11, 2013 4:12 pm

Modified lever In what way ?

They are basically the same part and interchangable.

http://images.cmsnl.com/img/partslists/ ... 1_5e6a.gif

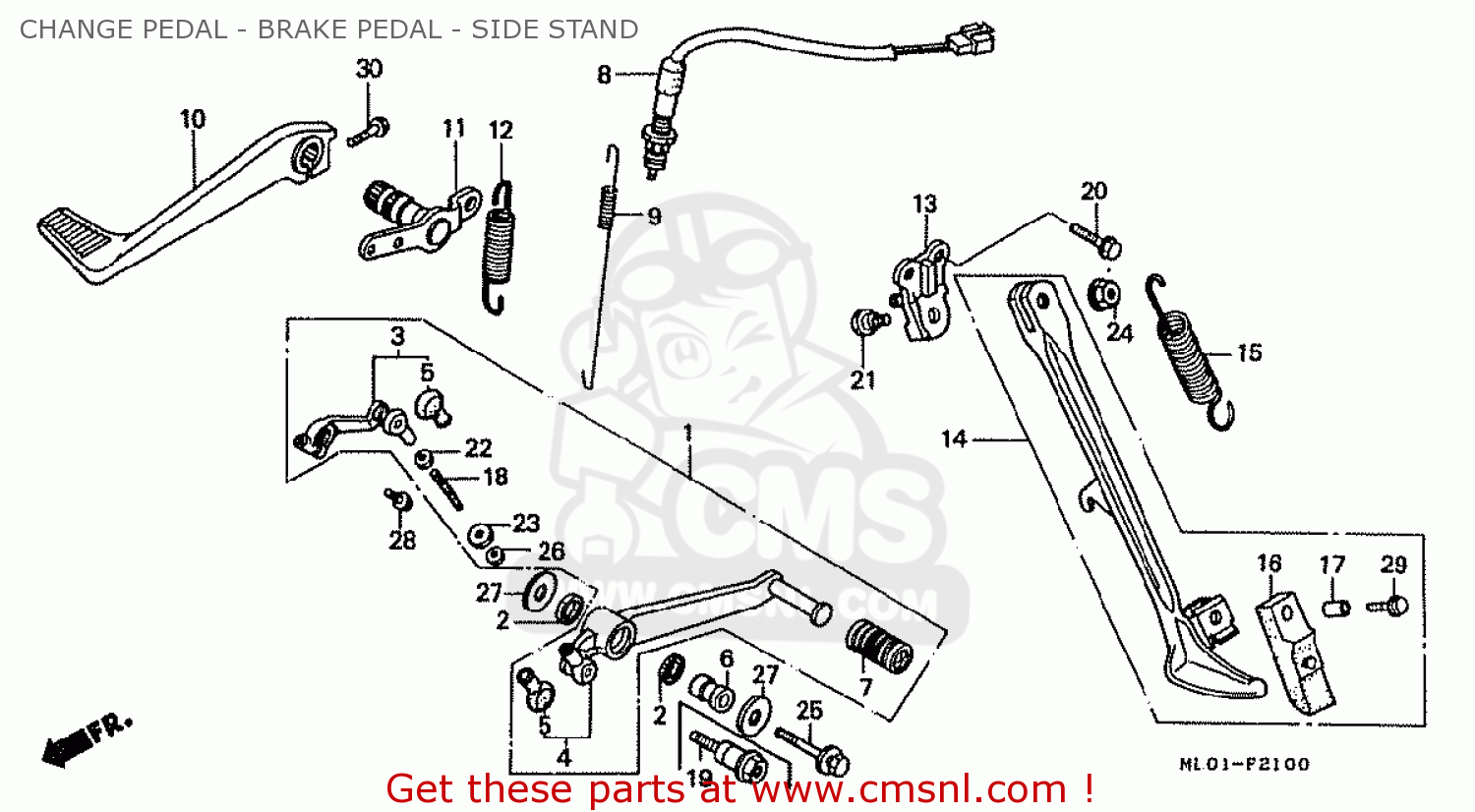

Here is the microfiche. You can see from here.

The gear lever and shaft also has a round mark punched into it to help you line it up properly.

Super easy.

damiannunn · Post by **damiannunn** » Tue Jun 11, 2013 9:31 pm

They drilled a hole into the side of the lever to move the foot bit forwards..?-which created a weak spot so when the wind blew it over - it snapped there.

The first part of the assembly(3 on diagram) from the old linkage has a different angle (a little bigger angle) than my new nc21 part.

Now i know about the markings and have the diagram i think i will just interchange the parts if i cant get the new part to fit.

Thankyou very much.

damiannunn · Post by **damiannunn** » Tue Jun 11, 2013 10:39 pm

damiannunn wrote:They drilled a hole into the side of the lever to move the foot bit forwards..?-which created a weak spot so when the wind blew it over - it snapped there.

The first part of the assembly(3 on diagram) from the old linkage has a different angle (a little bigger angle) than my new nc21 part.

Now i know about the markings and have the diagram i think i will just interchange the parts if i cant get the new part to fit.

Thankyou very much.

Fixed!

Thanks for you help
