Can someone link me a nc30 race loom wiring diagram please

Forum rules
Please can you post items for sale or wanted in the correct For Sale section. Items / bikes for sale here will be removed without warning. Reasons for this are in the FAQ. Thanks
Post Reply
bean
Settled in member
Posts: 57
Joined: Fri May 02, 2008 3:08 pm

Can someone link me a nc30 race loom wiring diagram please

Post by bean » Wed Mar 21, 2012 11:58 am

As per title please, non charging harness diagram please, the one I got from the search button doesn't work? Or has been moved?
Cheers
Ben
Top
hardnutdvd
Regular Member
Posts: 608
Joined: Fri Jan 01, 2010 8:50 pm
Bike owned: RVF400 NC35
Location: Bedford, Bedfordshire

Re: Can someone link me a nc30 race loom wiring diagram plea

Post by hardnutdvd » Wed Mar 21, 2012 4:35 pm

is this useful.. it may help
http://www.400greybike.com/files/NC35%2 ... iagram.pdf
Top
User avatar
Yakama
Site Supporter
Site Supporter
Posts: 1369
Joined: Wed Apr 30, 2008 5:27 pm
Bike owned: NC23s, 29, 30s, MC16
Location: Oban

Re: Can someone link me a nc30 race loom wiring diagram plea

Post by Yakama » Wed Mar 21, 2012 6:57 pm

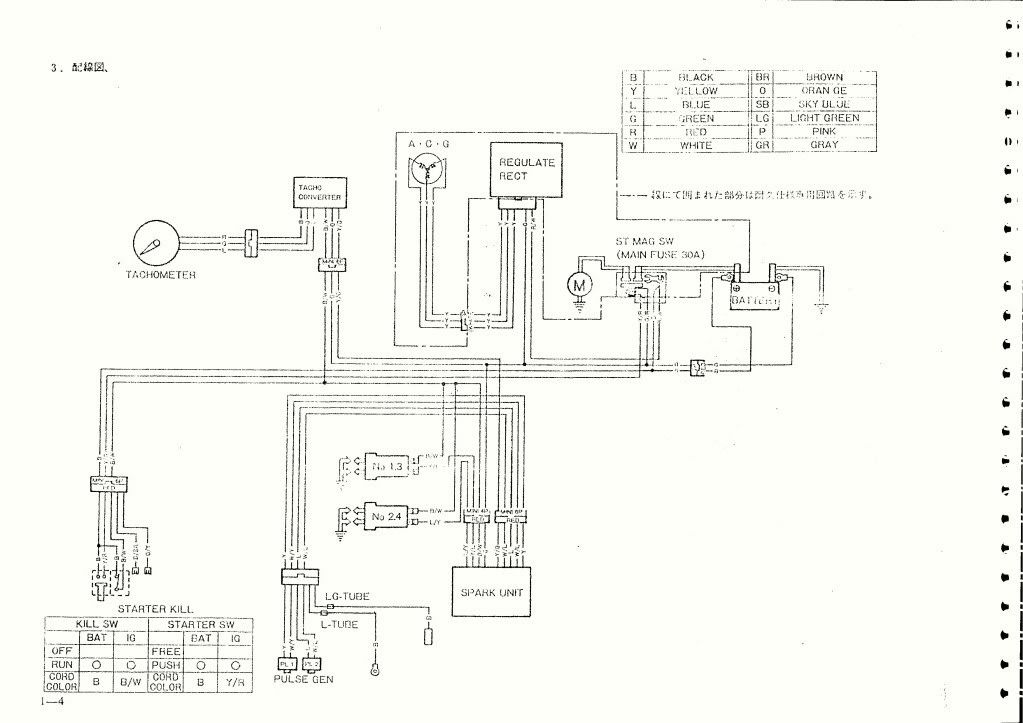

Here is the wiring racing diagram from the 1990 NC30 HRC TTF3 Manual (which I believe you can download from the main page):

Top
bean
Settled in member
Posts: 57
Joined: Fri May 02, 2008 3:08 pm

Re: Can someone link me a nc30 race loom wiring diagram plea

Post by bean » Thu Mar 22, 2012 11:32 am

Thanks guys
